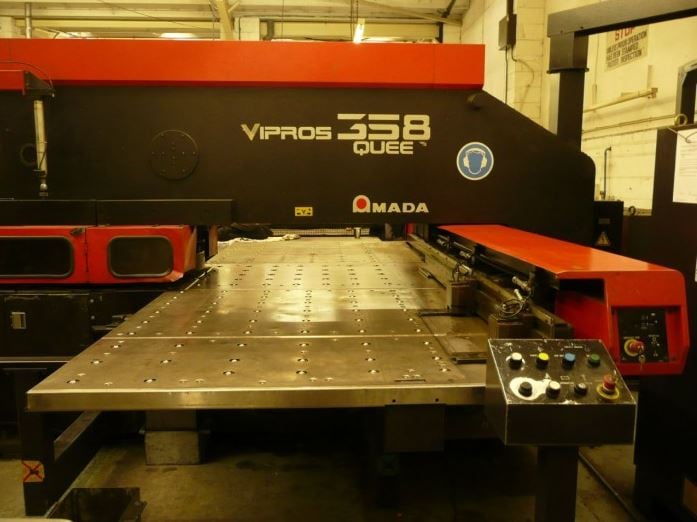

Amada Vipros 358 Queen (1998)

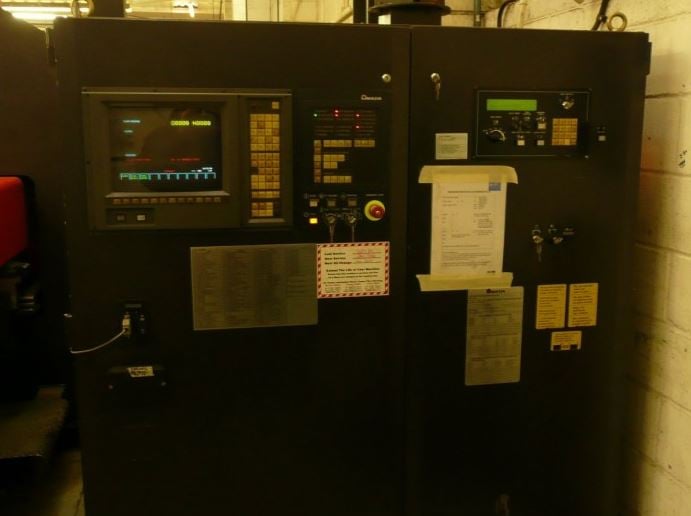

45 Station 4 Auto Index w/ Fanuc 04PC Controller

1270 x 2000 30T CNC Turret Punch

Workable Max. Sheet Size: 1270 mm x 4000 mm
Max. Material Thickness: 6.35mm MS

Max. Hole Dia: 114.3 mm
Number Of Stations 45 Stations: 24 x 12.7 mm 12 x 31.7 mm 2 x 50.8 mm 1 x 88.9 mm 2 x 114.3 mm
auto-index stations: 2 x 31.7 mm 2 x 50.8 mm
Hits Per Minute (2mm Pitch): 520 H.P.M./3mm stroke
Hits Per Minute (2mm Pitch): 275 H.P.M./8mm Stroke
Axis Speed: 82 m/min
Turret Speed Bi-Directional: 30 R.P.M
Ram Stroke Length (Maximum): 40 mm
Tool Lubrication: Air Blow System
Axis and Turret Drive: AC Servo Motor
Electric Power Required: 30 kVA 400V +/- 10% 50 Hz
Air Pressure Required: 5.0 kgf/cm
Air Flow: 250 1/min
Cooling Water Flow: Min 40 1/min
Machine Weight: 13500 kg
Guarding: Electronic light screen
