Intermach NZ Ltd > Machines > Sheetmetal > Cutting - Laser > HSG Fiber Laser – 2Kw – 3000mm x 1500mm Sheet – G3015A

HSG Fiber Laser – 2Kw – 3000mm x 1500mm Sheet – G3015A

  • G3015A with logo's
  • HSG Cutting head
  • IMG_0812
  • IMG_0813
  • IMG_0814
  • IMG_0815
  • IMG_0816
  • IMG_0817
  • IMG_0818
  • IMG_E2742
  • laser cut samples 2
  • laser cut samples 3
  • laser cut samples 4
  • laser cut samples 5

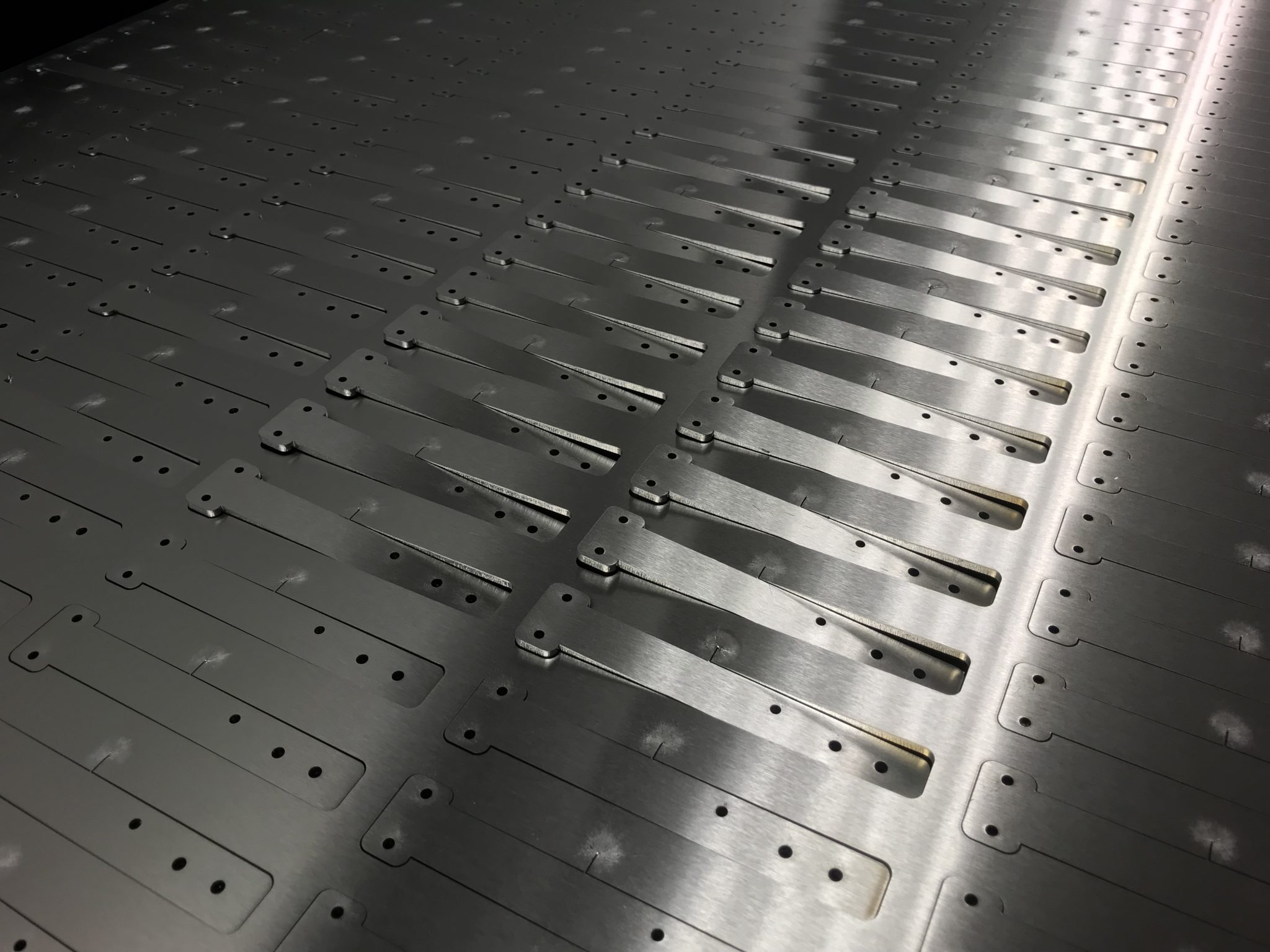

  • laser cut samples 7
  • laser cut samples 8
  • laser cut samples
  • laser cutting samples

HSG Fiber Laser  – 2Kw – 3000mm x 1500mm Sheet Capacity (Available ex stock now)

Also available in 4m x 2m, 6m x 2m and 6m x 2.5m – 1Kw, 1.5Kw, 2Kw, 3Kw and 4Kw

HSG Laser is proud to present its ever popular GA Fiber Laser. A fast, accurate, fully
enclosed laser machine, the GA will outperform any fiber laser cutter in this
price bracket.

Featuring the latest laser cutting technology, HSG lasers bring decades of industry
leading laser experience to the marketplace. And with the introduction of the
GA series, high performance laser cutting is more affordable than ever.

The GA model offers the highest quality components and a build
quality second to none. The machine offers excellent reliability along with high
speed and exceptional accuracy.

Rapid market acceptance has allowed HSG to export to over 60
countries all over the world.

HSG have the technology to give you the edge. You won’t find a
better machine for the price! … 3 of this model already operating  in New Zealand

Features:

IPG Laser Power Source
Auto Focus Cutting Head
Sectionalised suction under cutting head
Fully enclosed roof
Semi Auto Transfer table (Fully Auto optional)
CNC Gas selection function
Chiller Unit
Donaldson Dust Extraction System
OD4 or OD6 certified Safety glass
Windows based Cypcut operating Software

G3015A  Specifications:

Working area (L*W) 3048×1524mm
X-axis running area 1524mm
Y-axis running area 3048mm
Z-axis running area 150mm
X/Y Positioning Accuracy 0.03mm/m
X/Y Repeated Positioning Accuracy ±0.03mm
Wave Length 1064nm
Max. Cutting Speed 35-40 m/min (Stainless 1mm)
Max. accelerated speed 1.2G
Voltage 415V, 50Hz
Power Requirement < 21kW (for 3kW)

Material                         1Kw      1.5Kw       2Kw          3Kw          4Kw
Stainless steel (N2)       5mm       6mm         8mm        12mm       14mm
Carbon steel (O2)        12mm     16mm       18mm       22mm        25mm
Galvanized steel (N2)    4mm       5mm         6mm         8mm        10mm
Aluminum (N2)               3mm       5mm         8mm       12mm        16mm
Red copper (N2)          1.5mm       4mm         5mm         6mm          8mm
Brass (N2)                       3mm       5mm         6mm         8mm        10mm









Specifications

HSG
G3015A 2Kw
New
Sheetmetal Laser Cutting
Cutting - Laser, Sheetmetal
