Digitiser Tracing Boards

LOGIC TRACE CNC DXF DIGITIZING SYSTEM

Save the countless hours needed to draw complicated profiles in CAD software programmes …. Trace and convert to DXF file in a fraction of the time

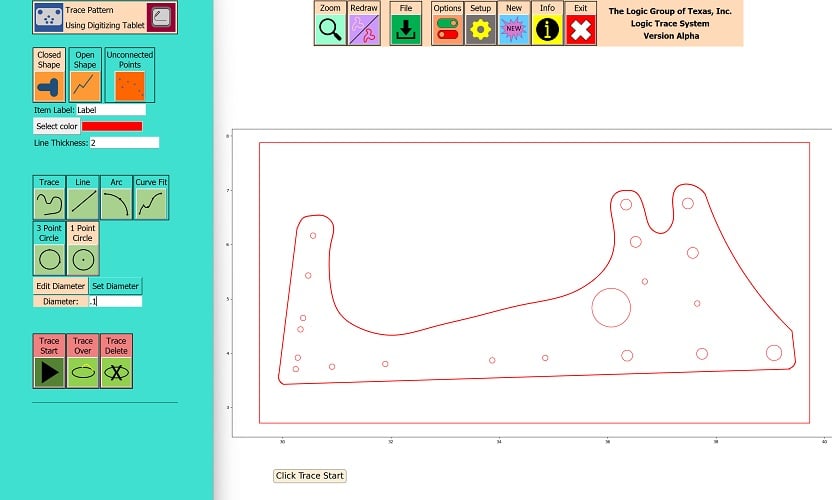

Designed specifically for the CNC Sheet and Plate processing industries, CAD and Pattern Making industries, the Logic Trace Digitizing System consisting of a state of the art, wire tracked digitizing board, a specially designed magnetised stylus pen and Logic Trace software that can quickly and easily trace any outline, template, object. … Easily and accurately trace or plot any part and create a DXF file on your computer ready for use with any CNC, CAD or cutting software.

A separate windows-based computer is required for operation and use. Not compatible with Linux-based computers.

Most commonly requested board sizes are 1100 x 1500 mm and 1.5 mtr × 2.4 mtr but we also have smaller and larger boards. Accuracy is 0.01″ and 0.005″ – See options below

Works with all machines:

Laser Cutting Machines, Plasma Cutting Machines, Waterjet Cutting Machines, Pressbrake Folding, Vinyl Cutters, Plotters etc .. in fact any and all CNC machines.

Works with all software:

Metalix, Cypcut, Cypnest, Alpha T, SigmaNest, Solidworks, Draftsite, Autocad, Lantek, Plasmacam, Mastercam, Mach3, Bobcad, Vectric, Vcarve, Rhino, CorelDraw, Adobe Illustrator, Gerber and many many others….. Our DXF files are compatible with all CNC and CAD software

Very easy to use, takes less than thirty minutes to become a competent operator.

Standard Board accurate to: 0.01″ (0.254 mm)
Option to be accurate to: 0.005″ (0.127 mm)

Board Sizes:

1100 x 1500 mm
900 x 1200 mm
600 x 900 mm
500 x 600 mm
300 x 450 mm
300 x 300 mm

Jumbo Sizes Available:

1.5 x 2.4 mtr
1.5 x 3.6 mtr
1.5 x 4.8 mtr
2.4 x 3.3 mtr
2.4 x 4.8 mtr
2.4 x 6.6 mtr

Description

Useful in countless industries including: general fabrication, metalworking, manufacturing, wood-working, plastics, furniture, upholstery, garments, machining, sign-making, boat manufacturing, replacement parts, prototyping and more. Trace lines, arcs, curves, points, circles. Trace point to point or continuously.

• Generate DXF files with Arcs and Lines or Polylines
• Convert DXF files to other formats

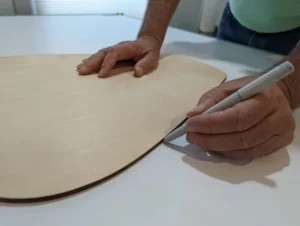

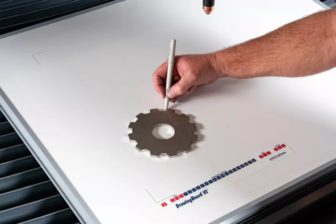

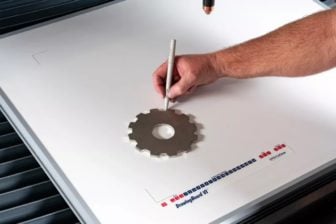

• Trace object on digitizer using pen stylus or cursor

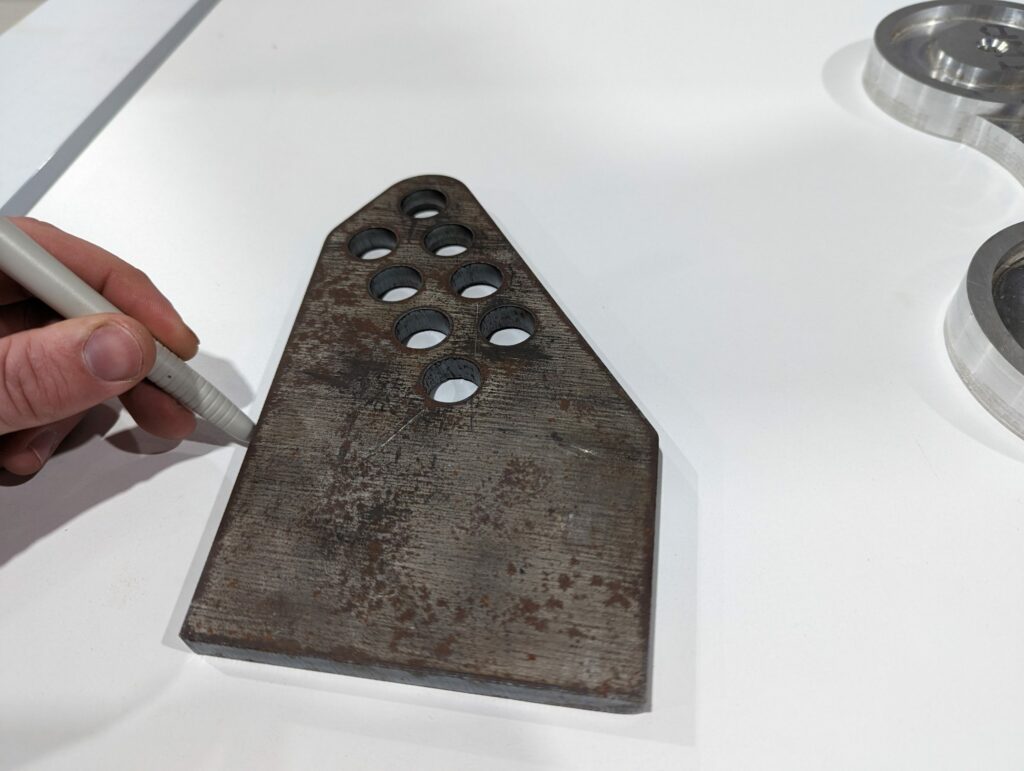

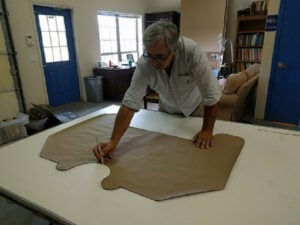

• Place object directly on digitizer or trace from template on digitizer
• Pen can register almost an inch above surface of board, trace through paper, cardboard, plastic, mylar
• Create accurate graphics files of objects in minutes
• Normal scaling is 1:1 with the ability to easily rescale dimensions
• English and metric units

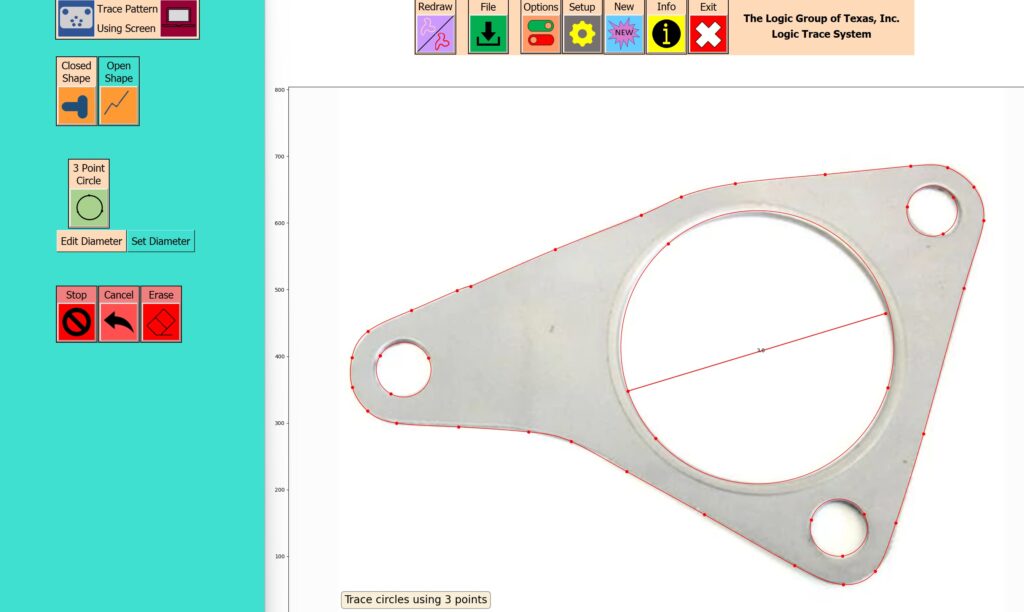

• Arcs created by digitizing endpoints and any middle point
• Complex curves can be created using polylines or by digitizing multiple points with arcs created automatically
