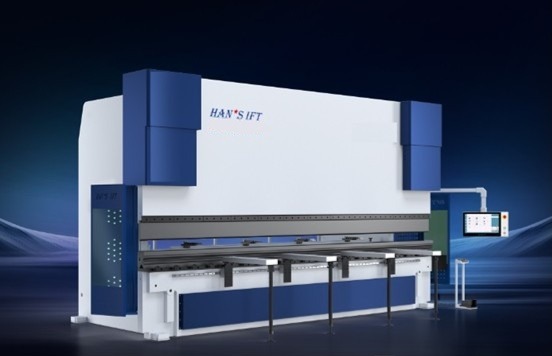

HAN’s HBD Heavy Duty CNC Pressbrake 1000 Tonne x 6m

Han’s IFT Heavy Duty Pressbrake 1000t x 6000 4 axis CNC

Features include:

– 1000 ton bending force
– 6000mm bending length
– 5100mm between frames

– 90mm/sec approach speed
– 7mm/sec bending speed
– 70mm/sec return speed

– 200mm/sec X Axis speed (backguage)
– 80mm/sec R Axis speed (backguage up and down)

– 700mm throat depth
– 365mm ram stroke
– 700mm open height
– Han’s IFT-19T CNC Touch Control
– 4 axis (Y1, Y2, R & CNC crowning compensation)
– deformation compensation on throat
– full top Eurostyle tooling in 835 or 500mm lengths
– full bottom Eurostyle clamping system with set of two V dies
– further tooling options subject to discussion

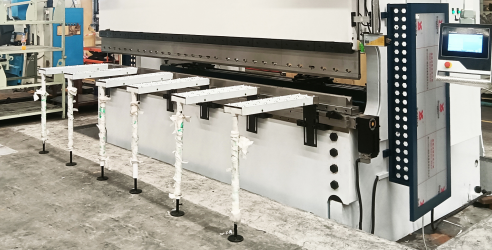

– 4 backgauge fingers moving freely on linear rail
– DSP Laser safety guard
– Physical side and rear guards

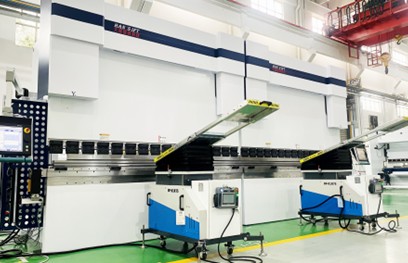

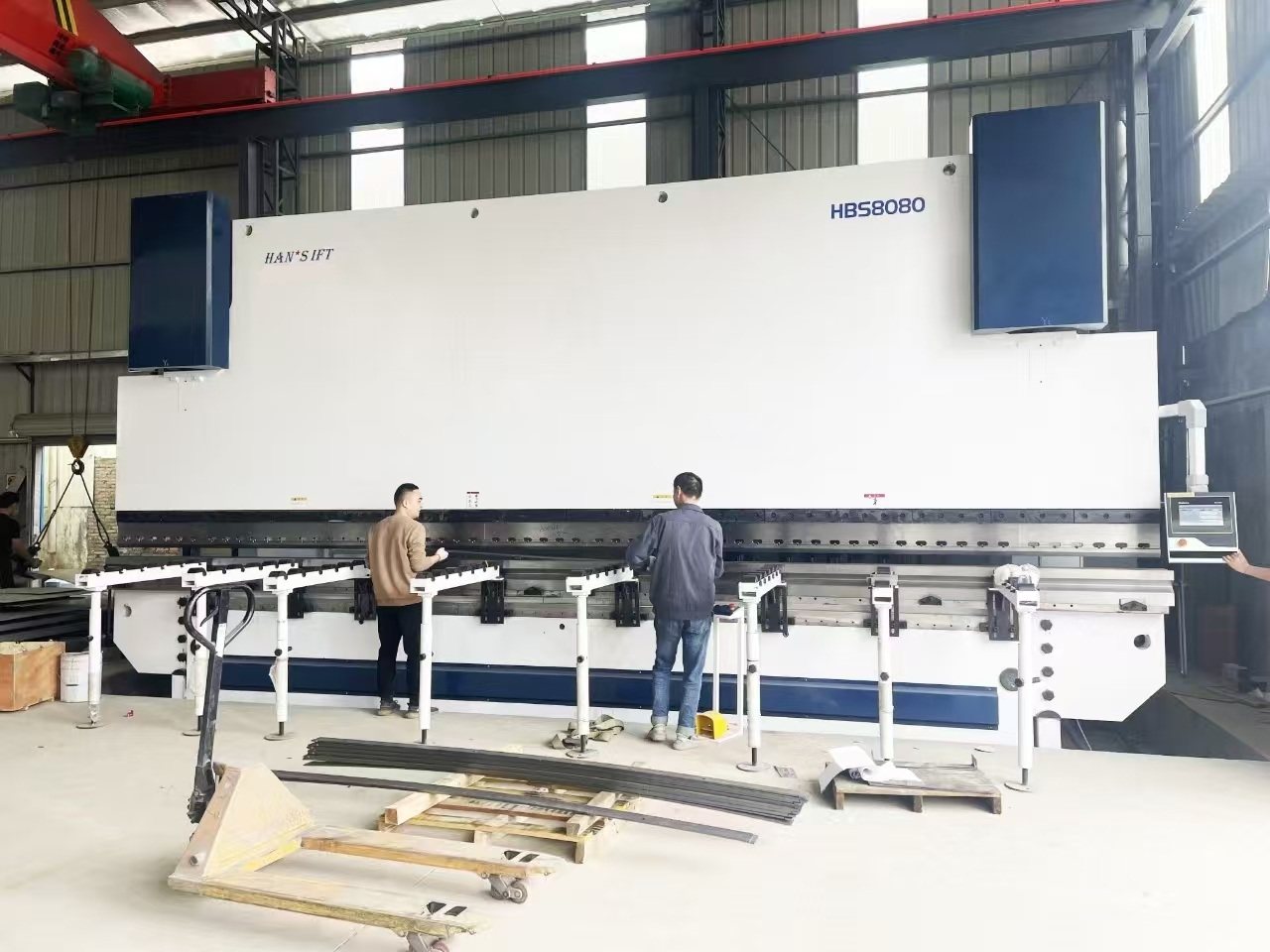

Han’s HBD series Heavy Duty Pressbrakes maintain perfect, high speed control of the beam positioning at all times, this is achieved by infintely controlled electro-servo positioning of Y1 & Y2 individually. The beam position (Y1 & Y2) is measured by independant linear scales, attached to decoupled measuring frames and monitored by CNC controlled servo drives.

The HBD series are perfectly suited to heavy plate production, high accuracy working environments, offering bending and repetitive bending tolerances of plus/minus 0.02mm
