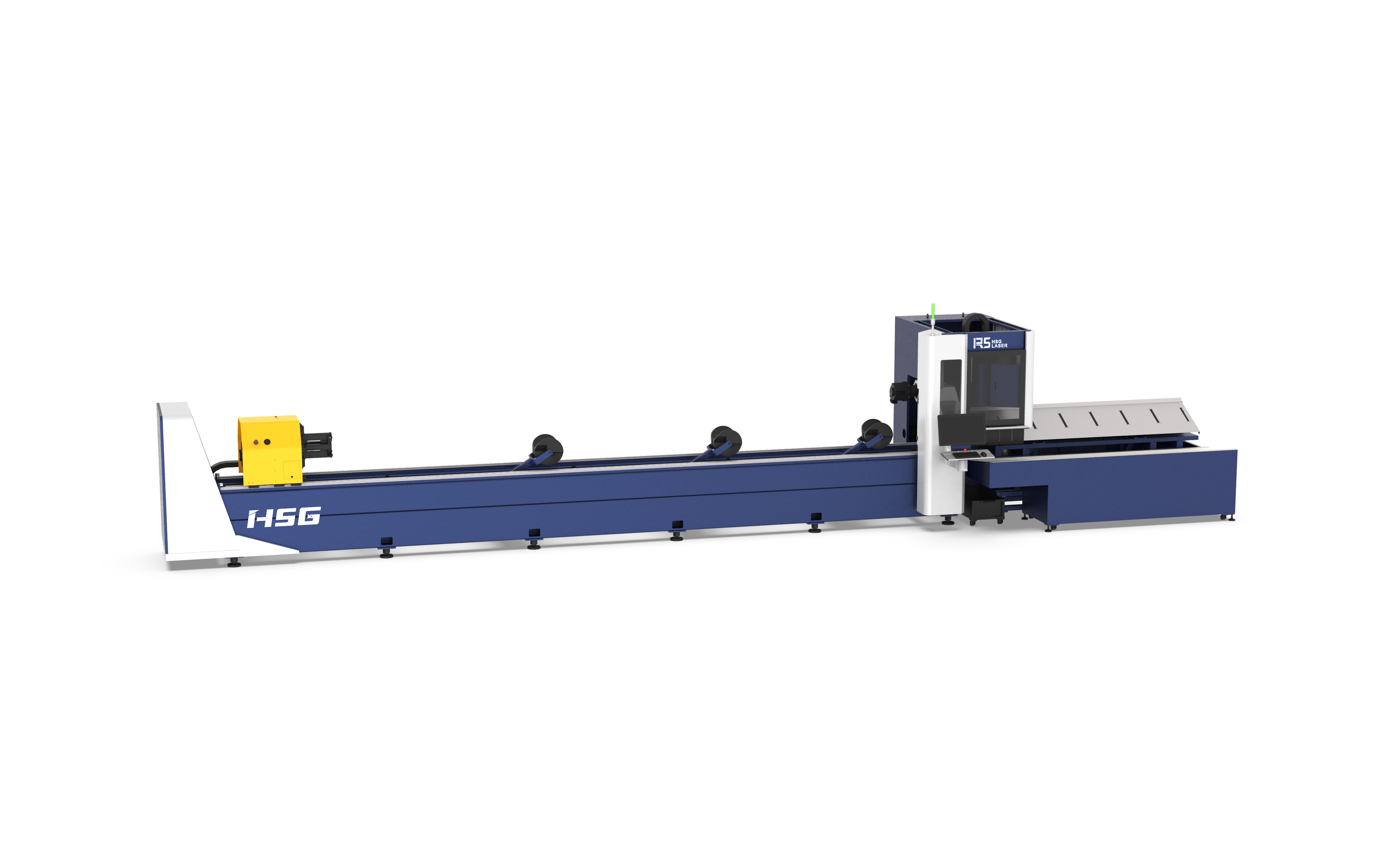

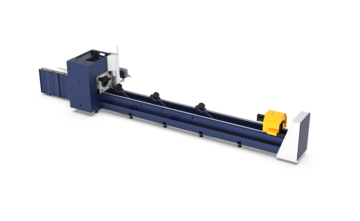

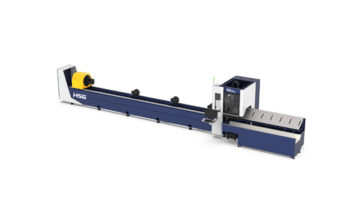

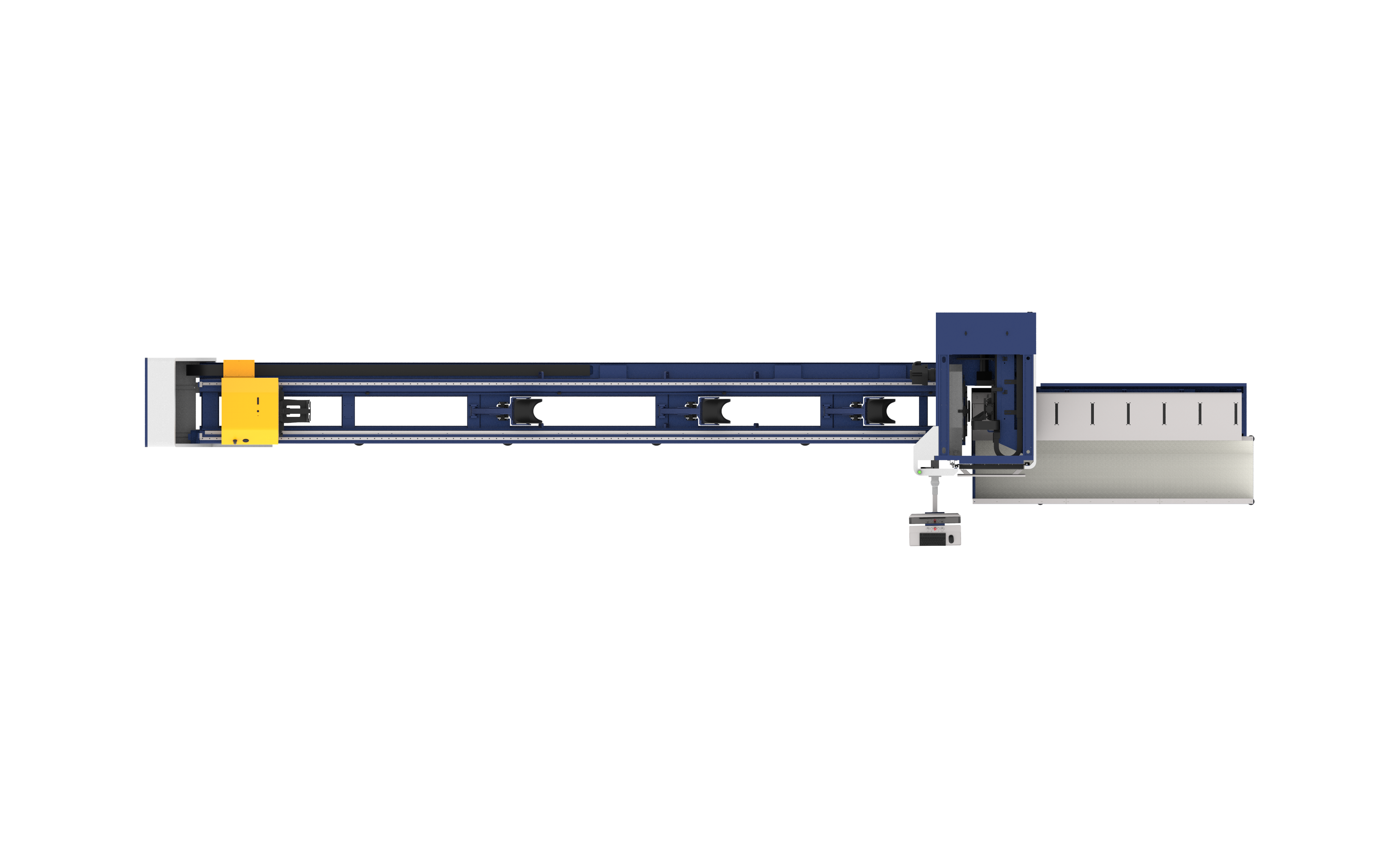

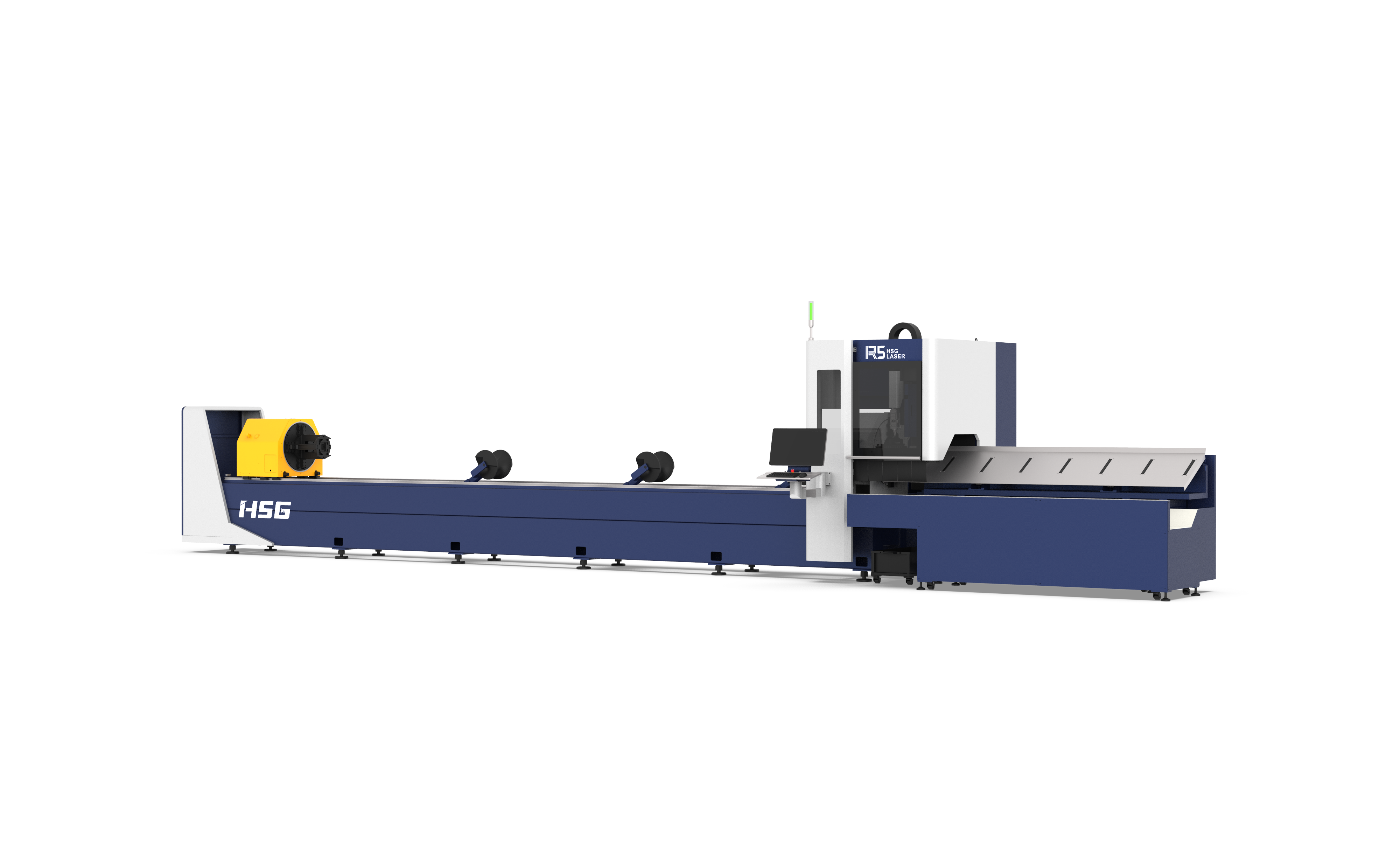

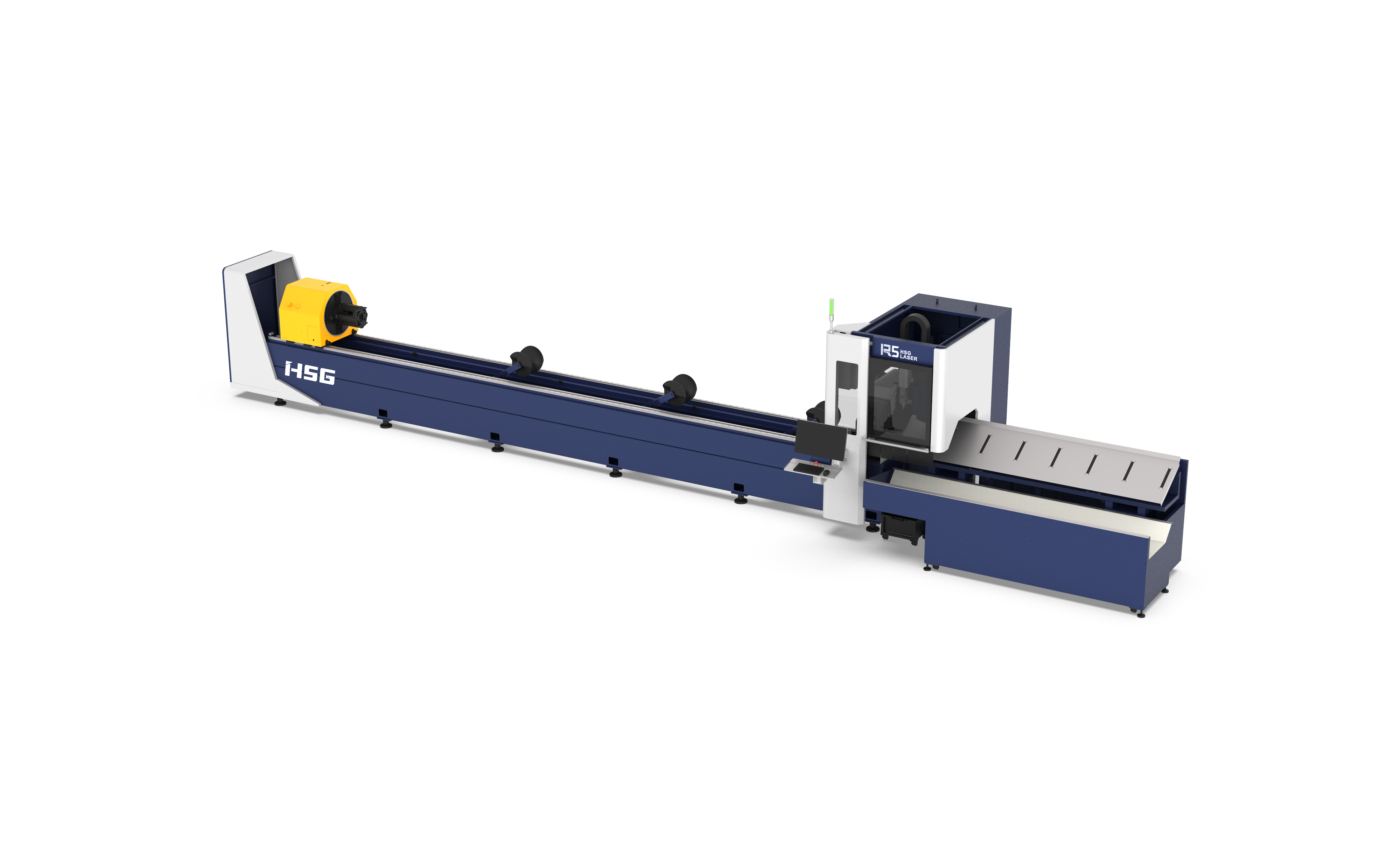

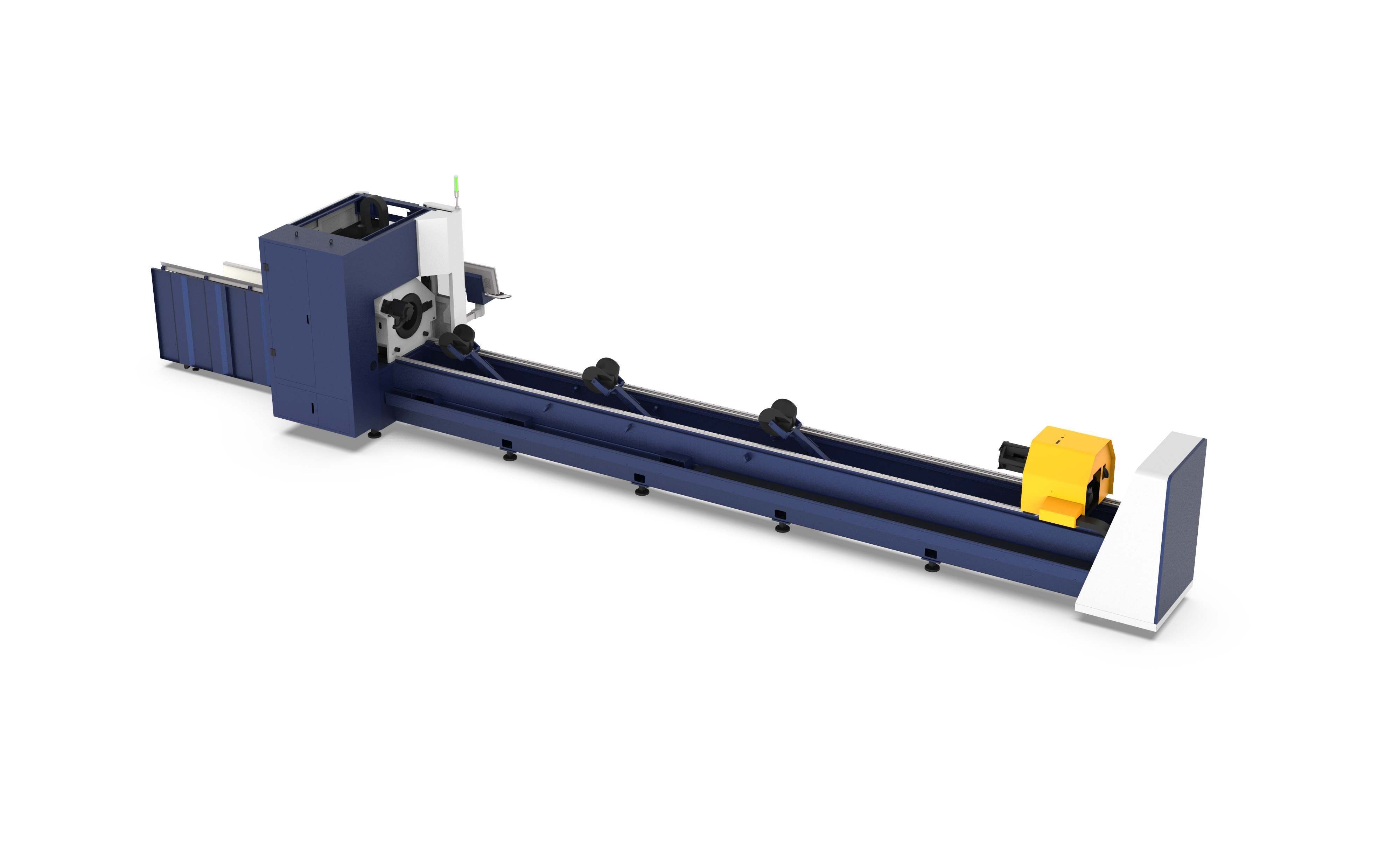

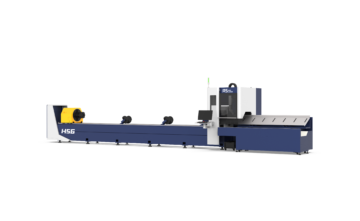

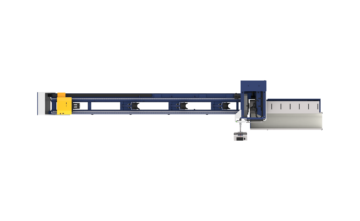

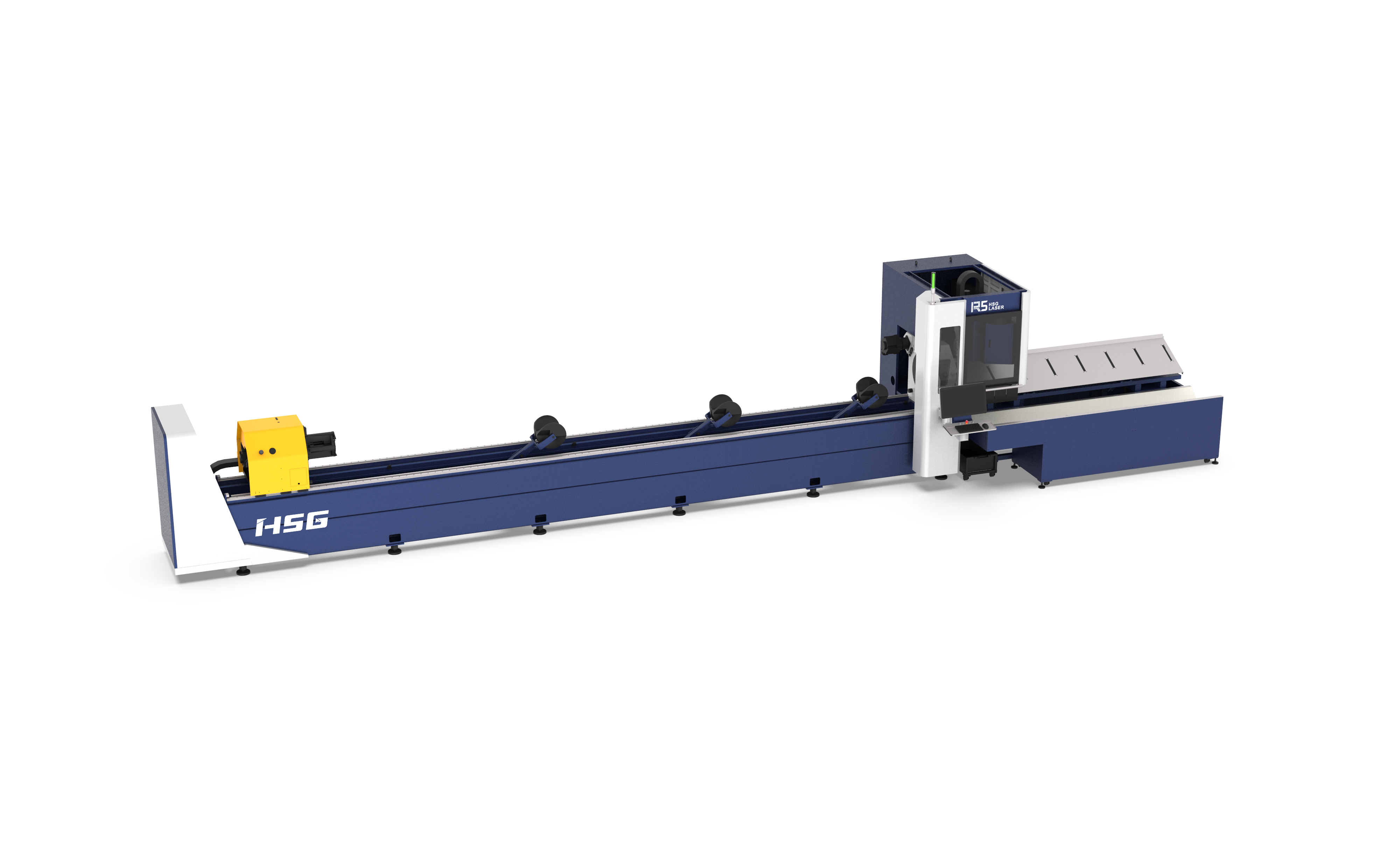

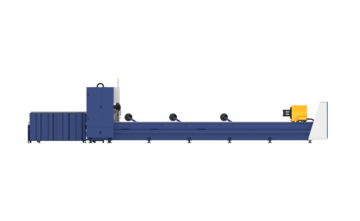

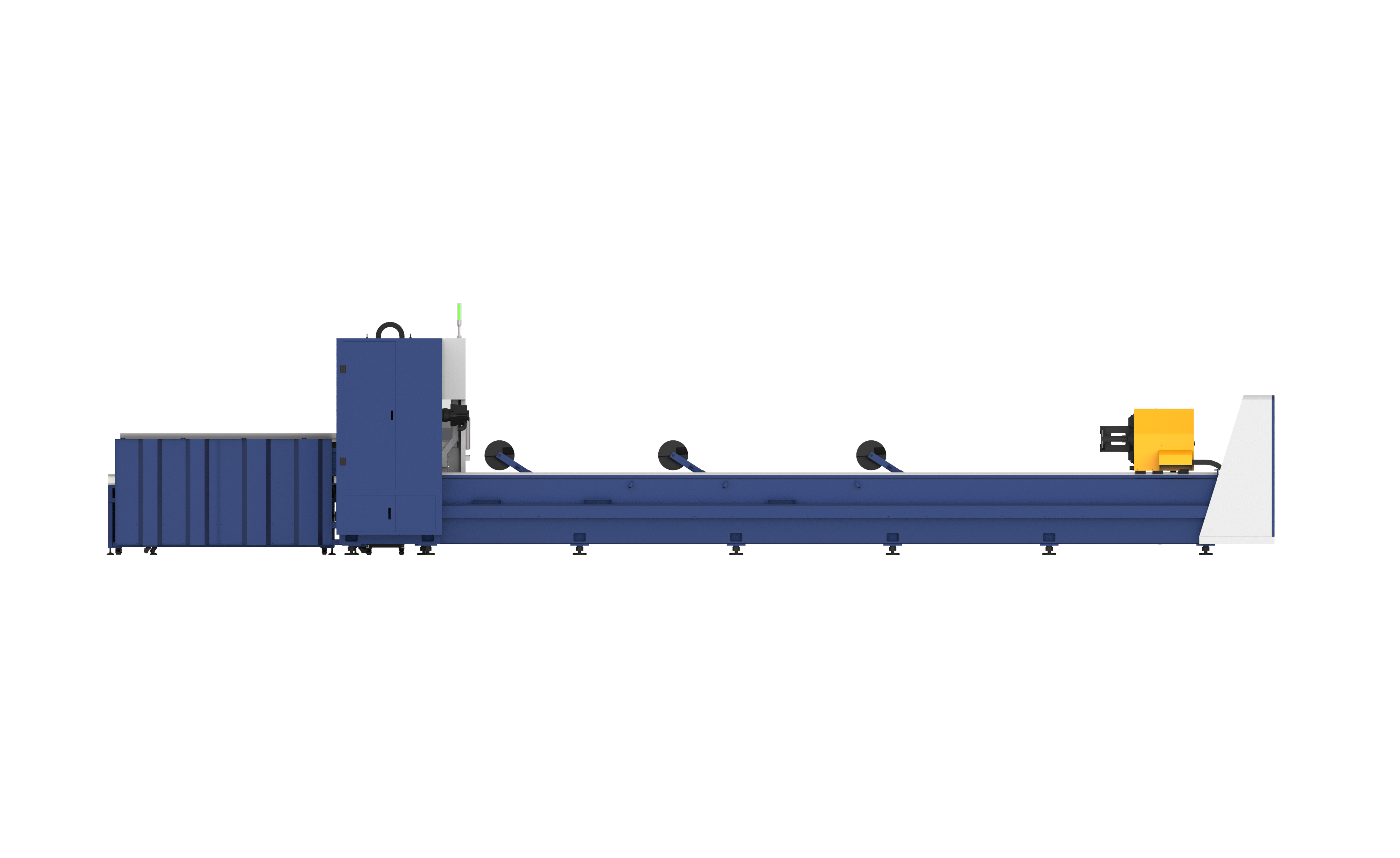

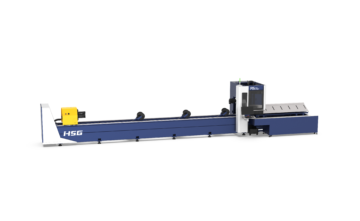

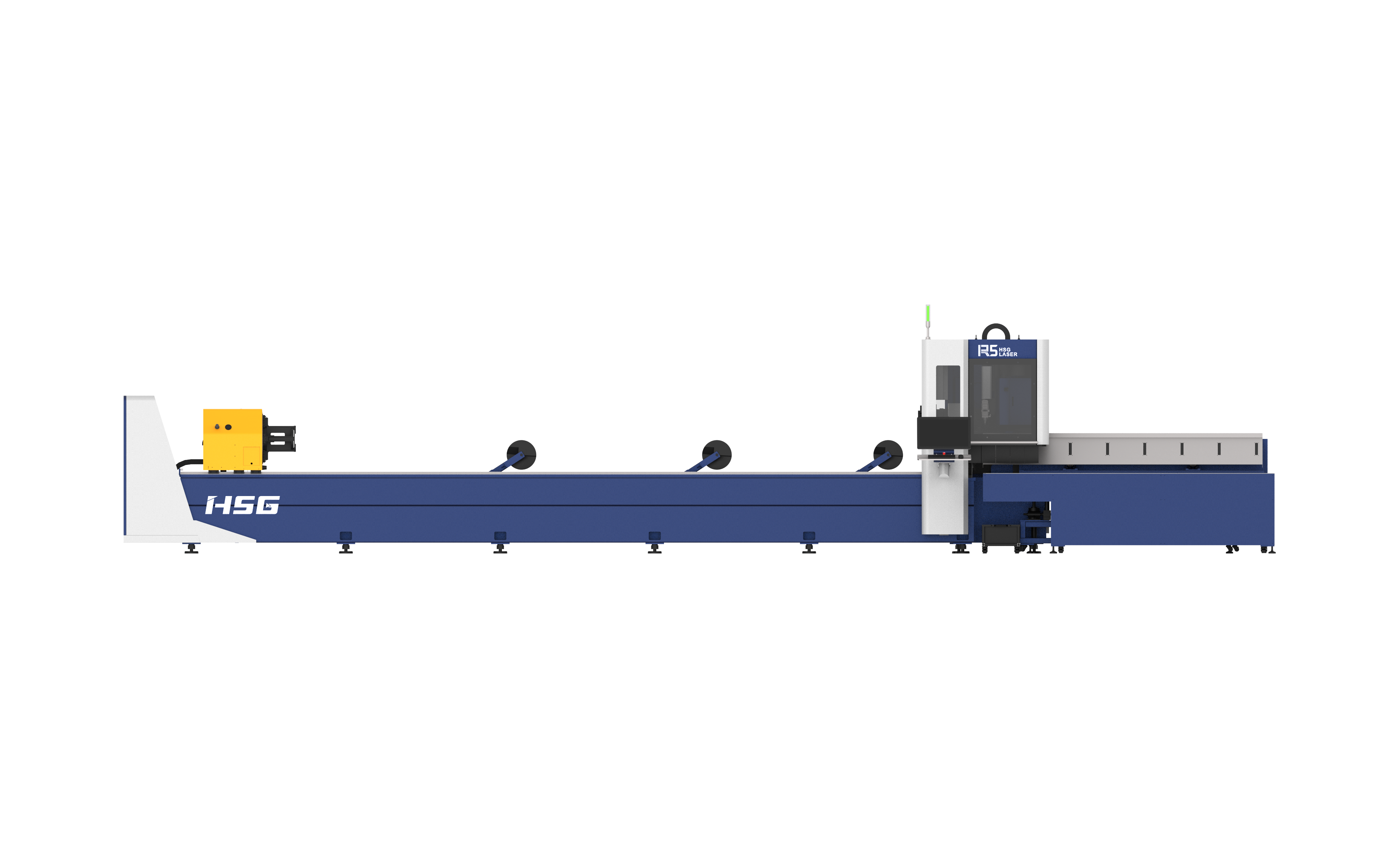

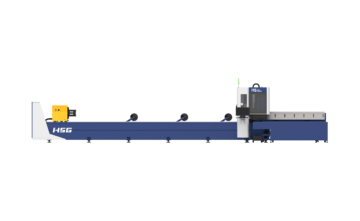

HSG Fiber Laser Tube Cutter – 1.5Kw – 6000m x 220mm Dia – R5

HSG Fiber Laser Tube Cutter – 1.5Kw – 6000m x 220mm Dia – R5

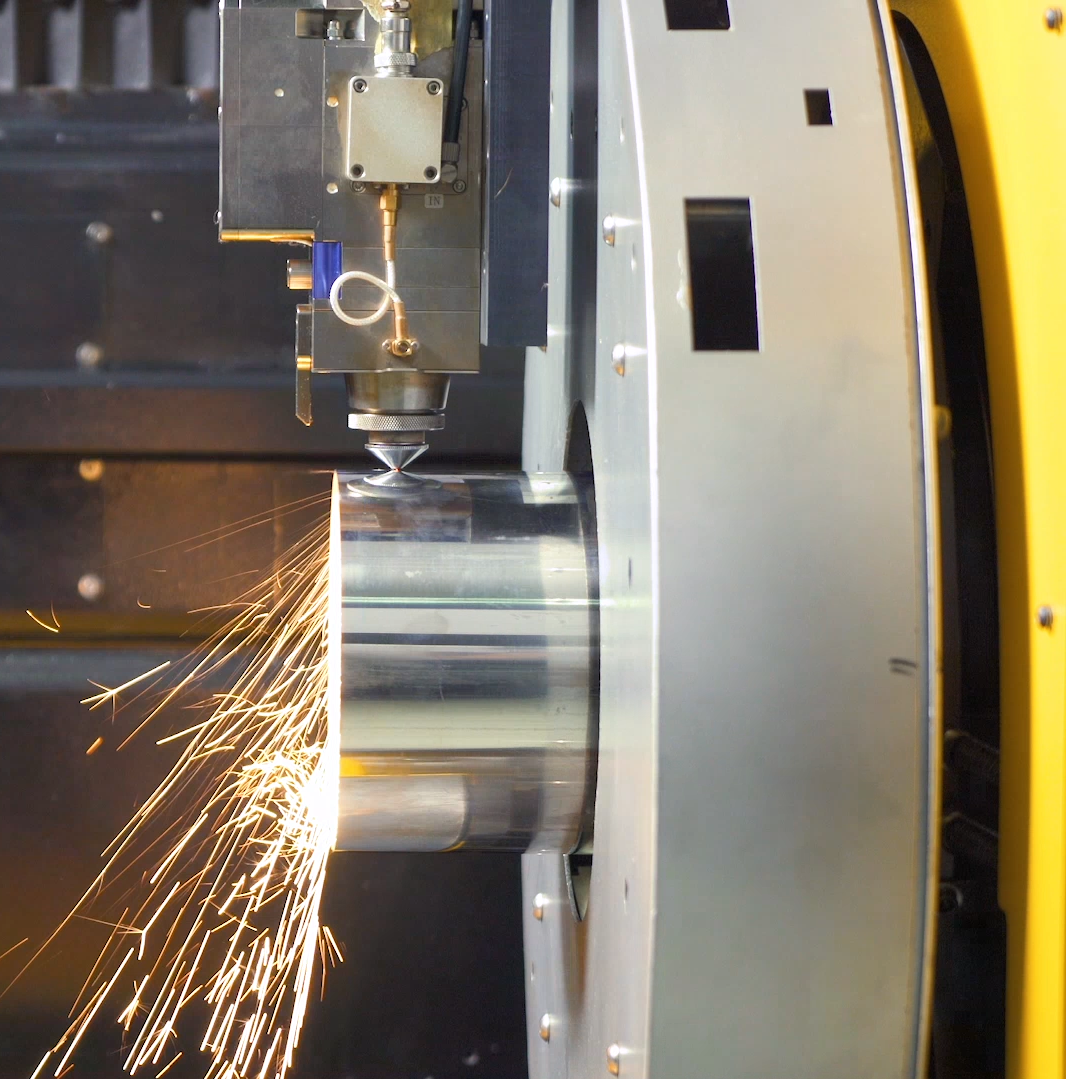

HSG Laser is proud to present its ever popular GA Fiber Laser. A fast, accurate, fully
enclosed tube laser cutting machine, the R5 offers exceptional value in this
price bracket.

The R5 model offers the high quality components and a solid build
quality . The machine offers excellent reliability along with high
speed and good accuracy.

INTERMACH have the Stock and Know How to give you the edge. You won’t find a
better supply partner in New Zealand …. call today for a chat and find out why

Features:

IPG Laser Power Source

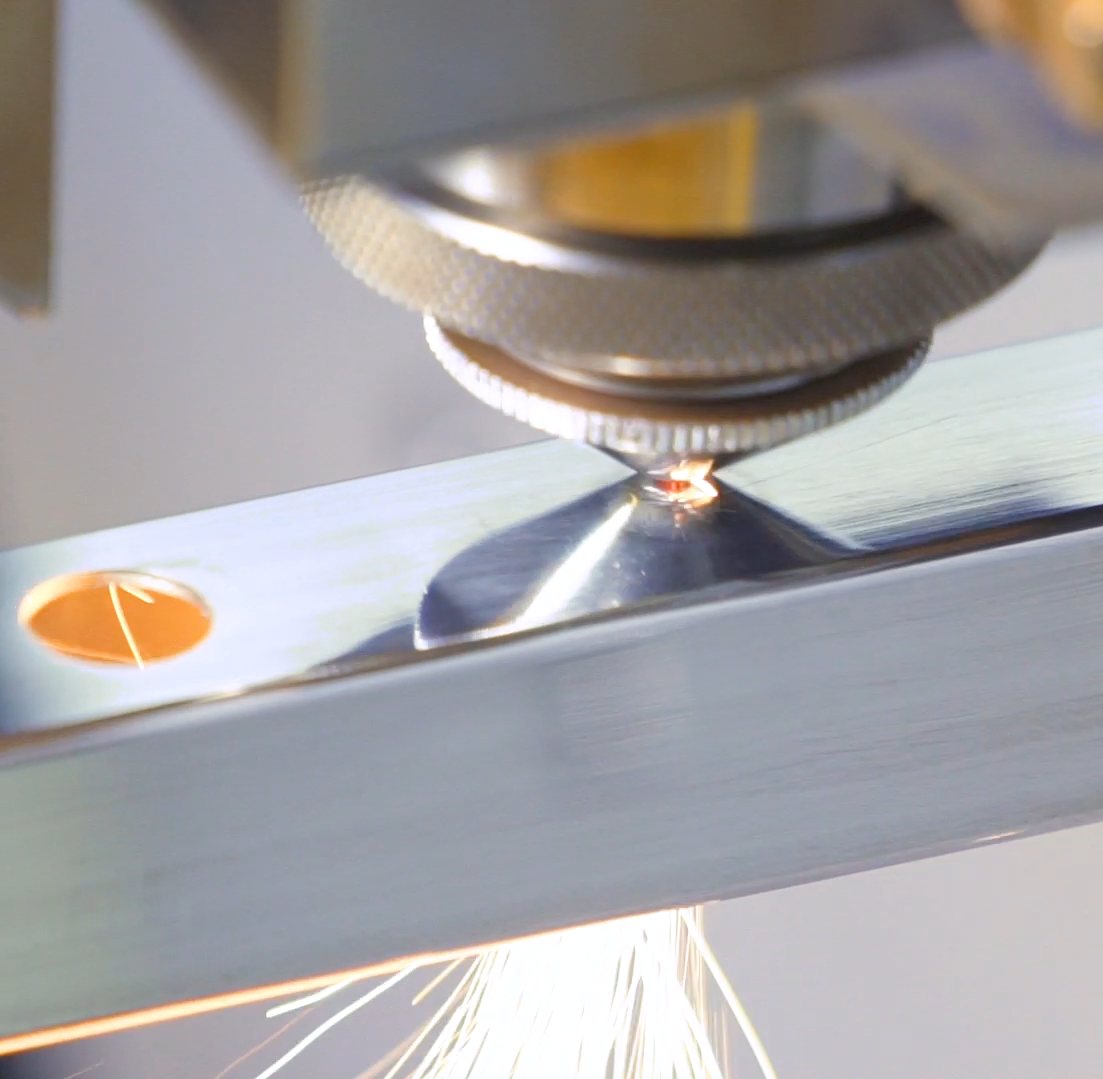

Auto Focus Cutting Head
Sectionalised suction under cutting head
Fully enclosed roof
Semi Auto Transfer table (Fully Auto optional)
CNC Gas selection function
Chiller Unit
Reverse Pulse Dust Extraction System
OD4 or OD6 certified Safety glass
Windows based operating Software

R5  Specifications:

Tube Diameter 20mm to 220mm
Max moving speed 100m/min
Max acceleration 1.0G
Position accuracy +/-0.03mm/m
Repositioning Accuracy 0.03mm/m
Laser Power source 1000w to 4000w
Machine weight 11000kg
Dimensions 12000 x 4000 x 2200mm

Material                         1Kw      1.5Kw       2Kw          3Kw          4Kw
Stainless steel (N2)       5mm       8mm       12mm        12mm       14mm
Carbon steel (O2)        12mm     16mm       18mm       22mm        25mm
Galvanized steel (N2)    4mm       5mm         6mm         8mm        10mm
Aluminum (N2)               3mm       5mm         8mm       12mm        16mm
Red copper (N2)          1.5mm       4mm         5mm         6mm          8mm
Brass (N2)                       3mm       5mm         6mm         8mm        10mm
