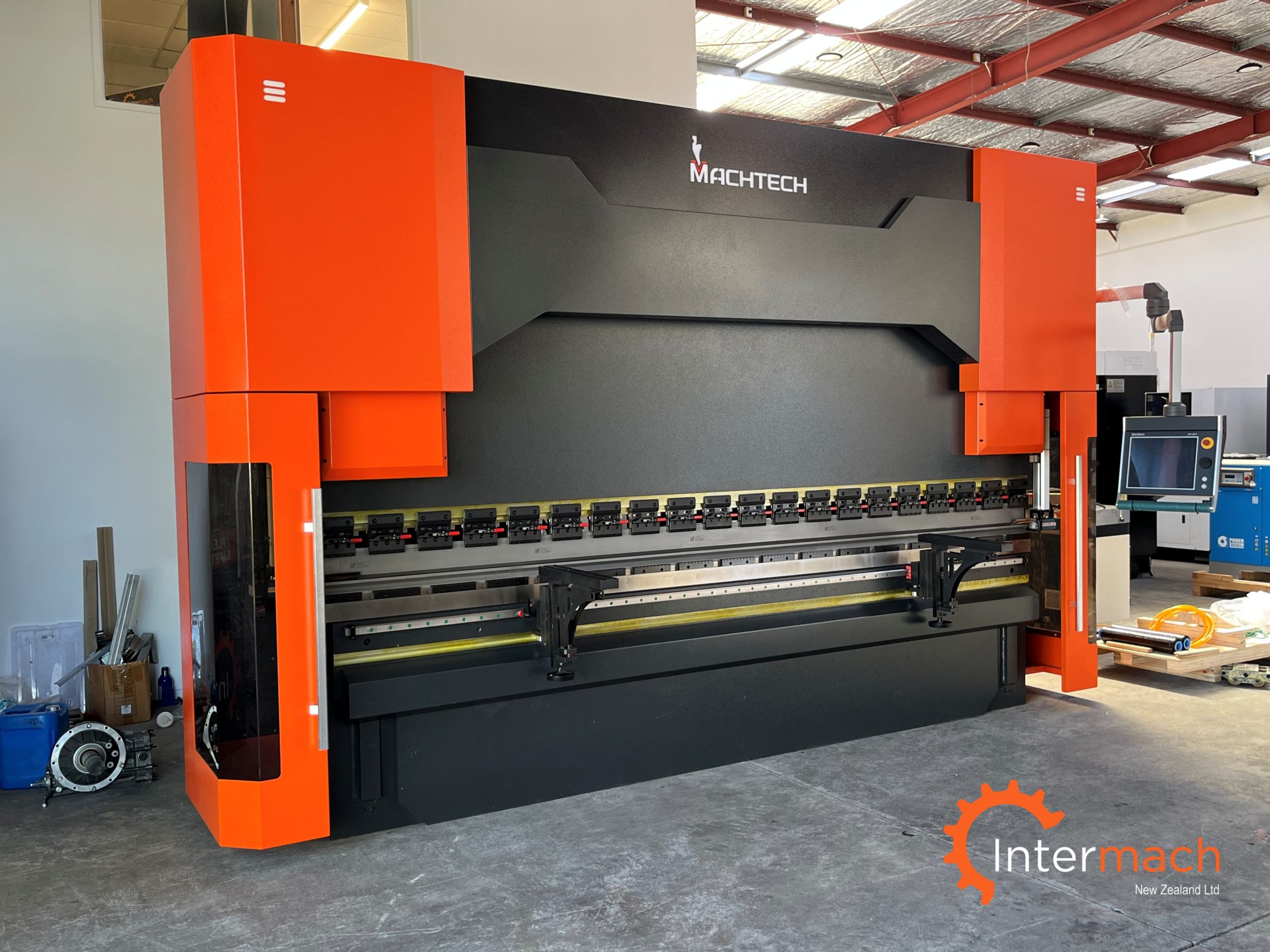

Pressbrake – MACHTECH PBS 300-4100 CNC7 Synchro

Machtech Synchro Pressbrake, PBS300-4100 CNC7

**AVAILABLE EX STOCK**

Features include:

– 300 ton bending force
– 4100mm bending length
– 3700mm between frames
– 410mm throat depth
– 265mm ram stroke
– 530mm open height
– Hoerbiger hydraulic system (Germany)
– Delem DA-52 CNC Control
– 7 axis (Y1, Y2, X, R, Z1, Z2 & CNC hydraulic crowning compensation)
– deformation compensation on throat
– full top Eurostyle tooling in 835mm lengths
– full Euro bottom multi-V block
– SMD fast wedge clamps
– 2 front sheet supports moving freely on linear guide
– 4 backgauge fingers moving freely on linear rail
– LN Tech Light Curtain
– Physical side and rear guards

Machtech PBS series Pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position (Y1 & Y2) is measured by independant linear scales, attached to decoupled measuring frames.

The PBS series are of the highest quality and are perfectly suited to high production, high accuracy work environments.
